Catalog Number - 68004-PG2-3

Cogent RP C4 Butyl Wide Pore Guard Column Cartridges are packed with the same high-quality stationary phase used in Cogent RP C4 Wide Pore analytical columns. The 300 Å pore structure is designed for proteins, peptides, enzymes, and other large biomolecules, while the fully double endcapped butyl (C4) bonded phase provides reliable chromatographic performance and protection for biomolecule separations.

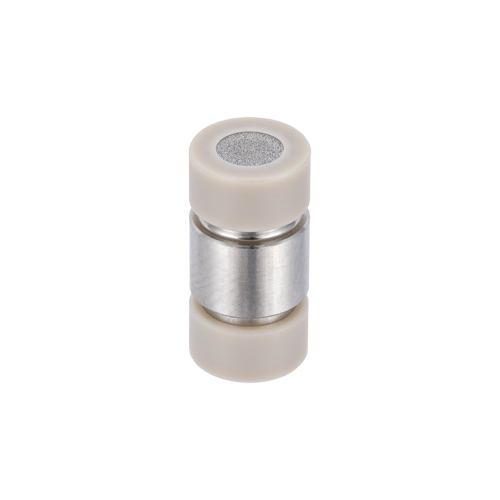

68004-PG2-3 is a guard column cartridge set packed with 10 µm RP C4 Butyl Wide Pore material with a 300 Å pore size in 4.0 mm ID x 10 mm length stainless steel cartridges. Designed for use with 3.0 mm, 4.0 mm, and 4.6 mm ID analytical HPLC columns, these cartridges help intercept particulates and strongly retained contaminants before they reach the analytical column bed. Regular guard cartridge replacement can help maintain consistent chromatographic performance and reduce analytical column replacement costs.

The wide pore RP C4 stationary phase is particularly well suited for protecting analytical columns used in protein, peptide, enzyme, and other large-molecule separations. Stainless steel cartridge construction with stainless steel frits and PEEK frit caps provides durability and reliable performance for routine HPLC and bioanalytical applications.

Key Benefits

• Packed with Cogent RP C4 Butyl Wide Pore stationary phase

• 300 Å pore size optimized for biomolecules

• Fully double endcapped chemistry

• High-purity silica support

• Designed for use with analytical HPLC columns

• Helps maintain column performance and reproducibility

• Cost-effective column protection

• Stainless steel cartridge construction

• Stainless steel frits with PEEK frit caps

• Supplied as a convenient 5-pack

Typical Applications

• Protein analysis

• Peptide analysis

• Enzyme characterization

• Bioanalytical HPLC

• Biomolecule separations

• Reversed-phase HPLC

• Pharmaceutical analysis

• Quality control testing

• Method development

• Analytical column protection

Specifications

• Product Type: Guard Column Cartridge

• Stationary Phase: RP C4 Butyl Wide Pore

• Chromatography Mode: Reversed Phase

• Bonded Phase: Butyl (C4)

• Endcapping: Fully Double Endcapped

• Particle Size: 10 µm

• Pore Size: 300 Å

• Cartridge Dimensions: 4.0 mm ID x 10 mm

• Hardware Material: Stainless Steel

• Frit Material: Stainless Steel

• Frit Cap Material: PEEK

• Quantity: 5/PK

• Brand: Cogent

Guard Column Holder Requirement

• A Cogent Guard Column Holder is required for use with these guard cartridges.

• View the Cogent Guard Column Holder 83000-GH

Important Notes

• Compatible with 3.0 mm, 4.0 mm, and 4.6 mm ID analytical HPLC columns

• Intended for protein, peptide, enzyme, and other biomolecule separations

• Replace as needed based on sample cleanliness and application requirements

• Recommended for routine use to help maximize analytical column service life
